Process Designer

Integrate JobRouter global database links to your current process via the menu item Add global connection. The JobRouter Administration Manual explains how to set up the global database links. You can use these global database links, but you cannot modify them. They are indicated by a check next to Global in the database connection overview.

Click Add global connection in the action bar to extend the reach of your process with a database connection. The following form window will be displayed:

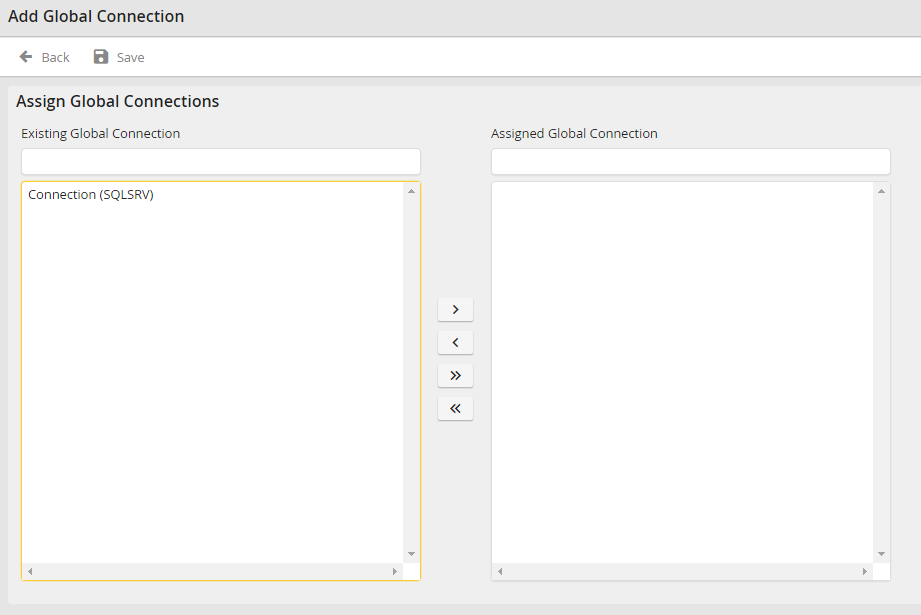

Adding a global database connections

Adding a global database connections

Select a global connection from the drop-down list. Click on the arrow WORKFL~1_img94 to apply that connection to the current process or click the left arrow WORKFL~1_img95 to remove the selected connection from the current process. Use the arrows WORKFL~1_img96 / WORKFL~1_img97 to apply all available JobRouter global connections or remove all database connections from the current process. Click Save to save the new database connection status and return to the overview.
