Process Designer

This element returns a result list in the form of a table. An SQL query is executed on a database connection, which is defined in JobRouter. The result of the query is displayed in the form of a table. The column headers are built from the column names or their aliases.

Please note: Before using this form element, please make sure you have read the chapter Notes on working with SQL fields in JobRouter carefully.

Property

Description

Name

Element name

Label

Label displayed in the left column

Info Text

Info text, that will be displayed

DB Connection

JobRouter database connection selection

SQL

SQL query performed on the database

Result Columns

Label

Column label

Type

Column type used for formatting and sorting.

DB field

Database column name from the SQL result

Width

Column width in pixels

Hidden

The column is not included in the dialogue.


Please note: Columns can be dynamically shown and hidden with the JavaScript API methods jr_show_table_column and jr_hide_table_column.

Settings

Width

Width in pixels

Height

Height in pixels

Use old structure?

If this property is activated the element will be displayed in an old variant. The functions Sortable?, Filter?, Paging?, Rows per page and Allow to change rows per page? are not available.



Please note: These properties are available to facilitate the migration and will be removed in a future version.

Sortable?

User can sort by all columns

Filter?

Table can be searched

Paging?

Table is divided over multiple pages


Please note: If the width of the table is too small, a reduced version of the page navigation is displayed.

Rows per page

Only for Paging: Initial page length is indicated

Allow to change rows per page?

Only for Paging: User can adapt the number of entries per page

Hidden?

The element will be integrated in the form in hidden form

Scripting

OnClick

Scripts, that will be executed after clicking on the element. In this scripts the variable [jr_row] can be used. It indicates the row, where the element was clicked and can e.g. be committed as parameter to a function.

Color

Background color

Background color of the column headers

Text color

Text color of the column headers

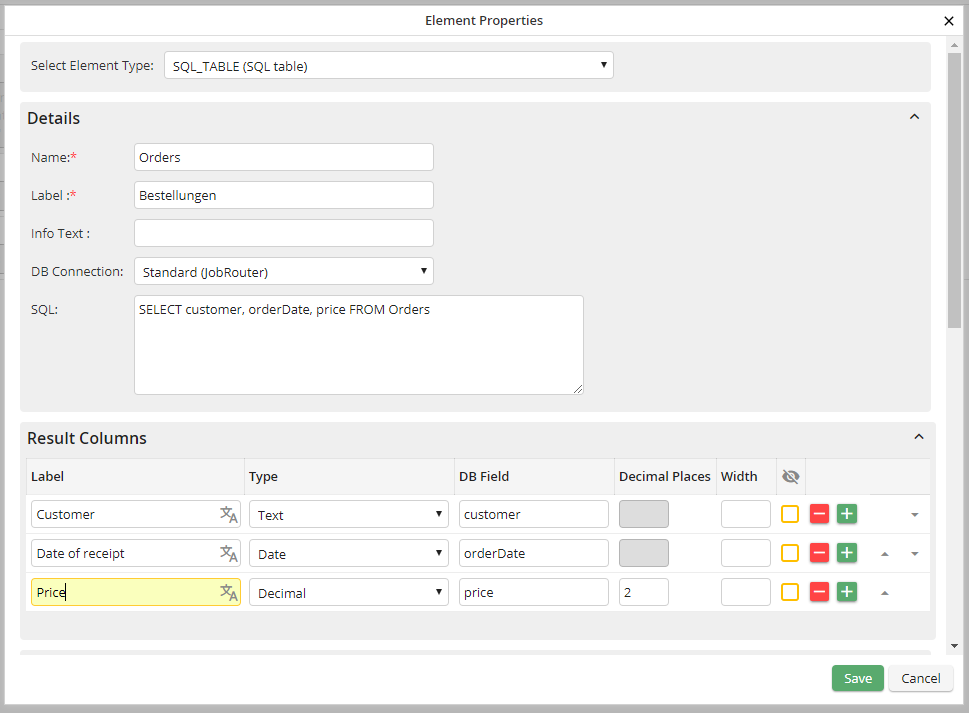

Configuration example:

Dialogelement_SQL_Table_Konfiguration

Display in the form:

Dialogelement_SQL_Table_Anzeige

Please note: If less columns are returned for the SQL query than column headers are stored, headers will be only displayed for as much columns as actually exist!
