Process Designer

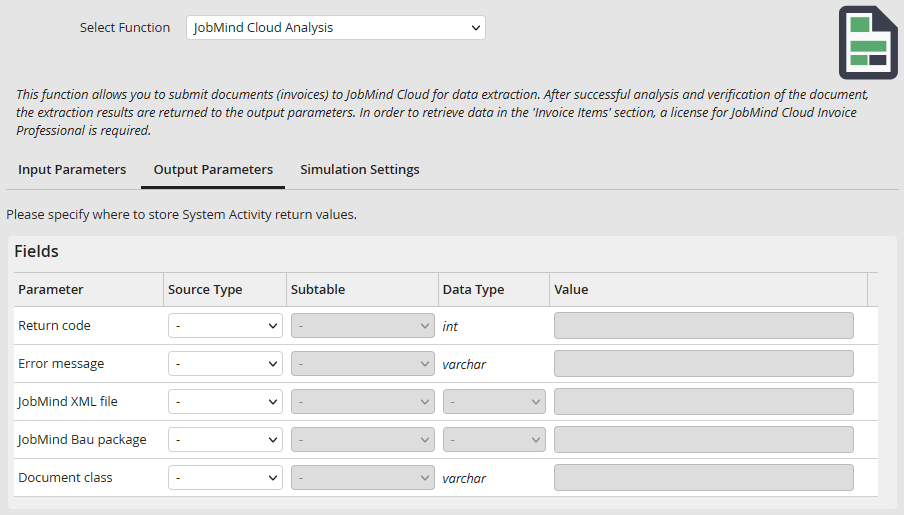

On this tab you can define, which values you want to write back into the instance.

Return value

In case of a successfully performed action, this parameter contains the value 1, otherwise the value -1.

Error message

If an error occurred during the performance of an action, this is the parameter that supplies the error message.

JobMind XML file

Here you can select the attachment row where the XML file containing the analysis results should be saved. Usually you do not need this file, though it can be helpful for troubleshooting in case of errors.

JobMind Bau package

Here you can select the attachment column in which the JobMind Bau package should be inserted in the form of a Zip file. The input parameter Provide JobMind Bau package must be activated. The option is only displayed in case of an existing license for the JobMind Bau modules.

Document class

This parameter supplies the document class of the analyzed document.

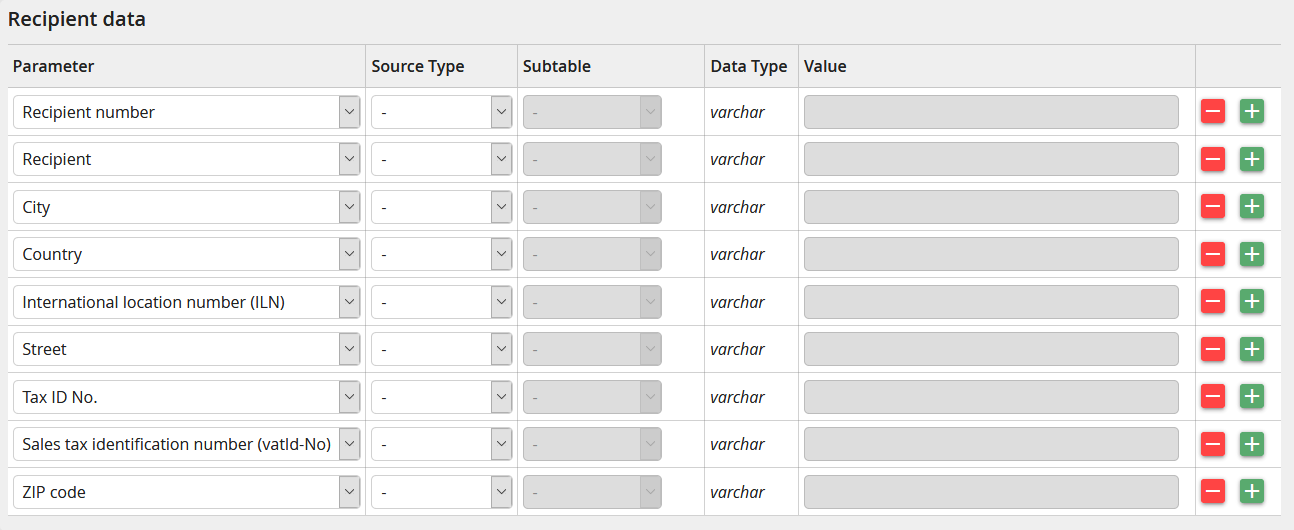

Recipient data

Here you can insert the identified recipient data into the process table fields.

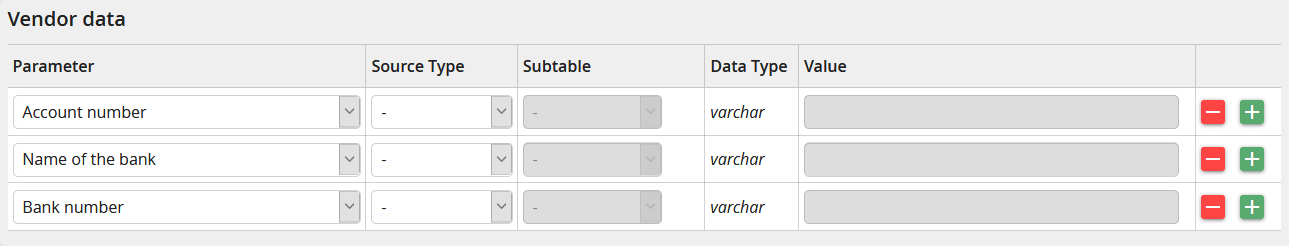

Supplier data

Here you can insert the identified supplier data into the process table fields.

Invoice data

Here you can insert the head data of the invoice. Among the invoice number and the invoice date you can also choose between numerous amount fields, which enable you to read net, gross or accounted tax amounts.

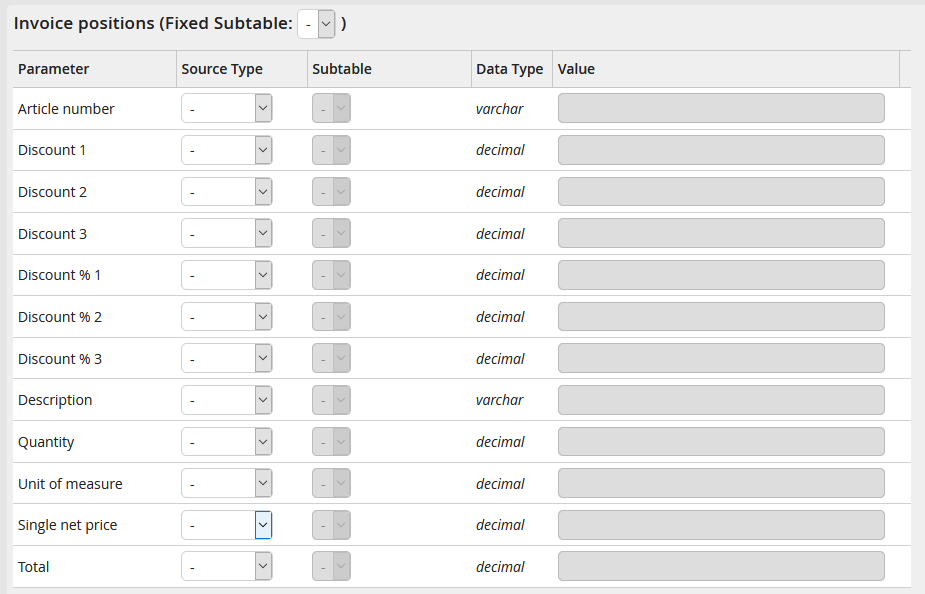

Invoice positions

Here you can write invoice positions into defined subtable fields.
